Controlling the access to this machine by IP address

IPv4 address filtering

The computers' access to this machine can be controlled via IP address. This is called "IP address filtering."

You can specify both IPv4 addresses that are allowed to access this machine and those refused to access the machine.

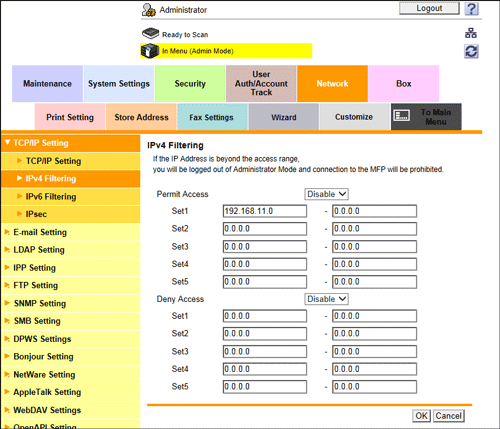

In the administrator mode, select [Network] - [TCP/IP Setting] - [IPv4 Filtering], then configure the following settings.

Settings	Description
[Permit Access]	Select [Enable] to specify IPv4 addresses that allow access. Also enter the range of IPv4 addresses that allow access. To allow access from a single IPv4 address, you can only enter the address in one side of the range. Example of entry: "192.168.1.1" [Disable] is specified by default.
[Deny Access]	Select [Enable] to specify IPv4 addresses refused to access. Also enter the range of IPv4 addresses. To refuse access from a single IPv4 address, you can only enter the address in one side of the range. Example of entry: "192.168.1.1" [Disable] is specified by default.

Settings

Description

[Permit Access]

Select [Enable] to specify IPv4 addresses that allow access. Also enter the range of IPv4 addresses that allow access.

To allow access from a single IPv4 address, you can only enter the address in one side of the range.

[Disable] is specified by default.

[Deny Access]

Select [Enable] to specify IPv4 addresses refused to access. Also enter the range of IPv4 addresses.

To refuse access from a single IPv4 address, you can only enter the address in one side of the range.

[Disable] is specified by default.

The computers' access to this machine can be controlled via IP address. This is called "IP address filtering."

You can specify both IPv6 addresses that are allowed to access this machine and those refused to access the machine.

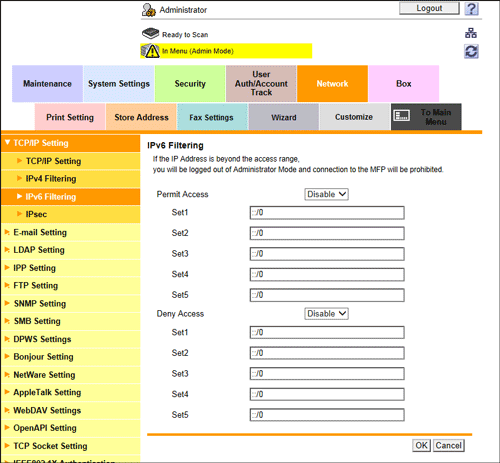

In the administrator mode, select [Network] - [TCP/IP Setting] - [IPv6 Filtering], then configure the following settings.

Settings	Description
[Permit Access]	Select [Enable] to specify IPv6 addresses that allow access. Also enter the range of IPv6 addresses that allow access. Prefix specification format: **:::::::*/@ Allowable range of asterisk (): Hexadecimal number Allowable range of at mark (@): 0 to 128 [Disabled] is specified by default.
[Deny Access]	Select [Enable] to specify IPv6 addresses refused to access. Also enter the range of IPv6 addresses. Prefix specification format: **:::::::*/@ Allowable range of asterisk (): Hexadecimal number Allowable range of at mark (@): 0 to 128 [Disabled] is specified by default.

Settings

Description

[Permit Access]

Select [Enable] to specify IPv6 addresses that allow access. Also enter the range of IPv6 addresses that allow access.

Prefix specification format:

****:****:****:****:****:****:****:****/@

Allowable range of asterisk (*): Hexadecimal number

Allowable range of at mark (@): 0 to 128
