If the OpenAPI application is registered on this machine, the application shortcut keys registered on this machine are displayed within Registered Application List Key (default: [APP]) on the main menu.
According to your system environment, you can change the name and icon of Registered Application List Key or manage the application shortcut keys by group on the main menu.
For details on the main menu, refer to Here.
Change the name and icon of Registered Application List Key (default: [APP]) displayed on the main menu.

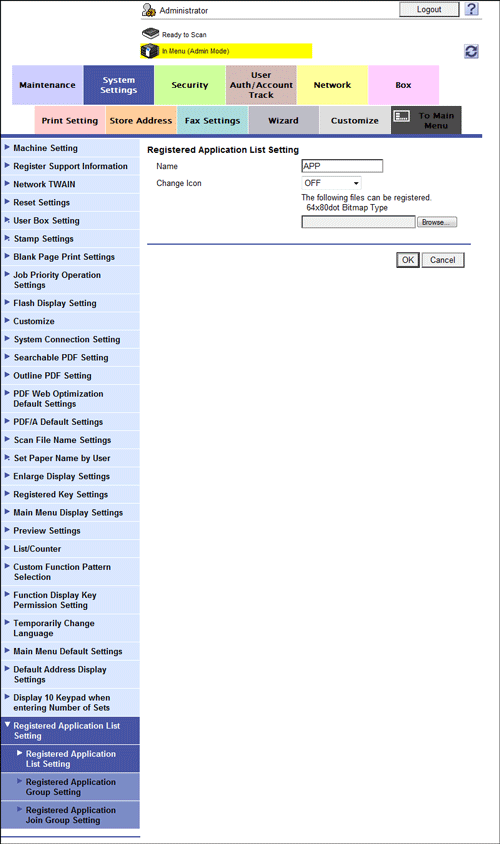

In the administrator mode, select [System Settings] - [Registered Application List Setting] - [Registered Application List Setting], then configure the following settings.
Settings | Description |
---|---|
[Name] | Enter the Registered Application List Key name (using up to 16 characters). [APP] is specified by default. |
[Change Icon] | Select whether or not to change the Registered Application List Key icon. To change an icon, select [Registration] and click [Browse], then specify the location of the image file to be used for the icon. Only a 64 [OFF] is specified by default. |
If multiple OpenAPI applications are registered on this machine, the application shortcut keys to be displayed on the main menu can be managed by group.
The application shortcut keys are displayed within the group keys on the main menu, which enables easy access to the desired applications.
You can register up to six groups.

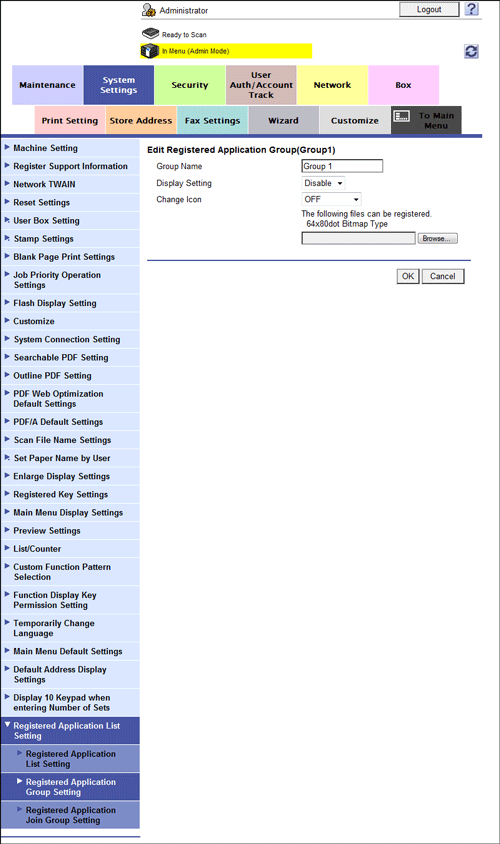

In the administrator mode, select [System Settings] - [Registered Application List Setting] - [Registered Application Group Setting], then click [Edit] for the group to be newly registered.
Enter the information of the group that the application will be registered to, and click [OK].
Settings | Description |
---|---|
[Group Name] | Enter the group name (using up to 16 characters). |
[Display Setting] | Select [Enable] to display the group keys on the main menu. [Disable] is specified by default. |
[Change Icon] | Select whether or not to change the group key icons. To change an icon, select [Registration] and click [Browse], then specify the location of the image file to be used for the icon. Only a 64 [OFF] is specified by default. |

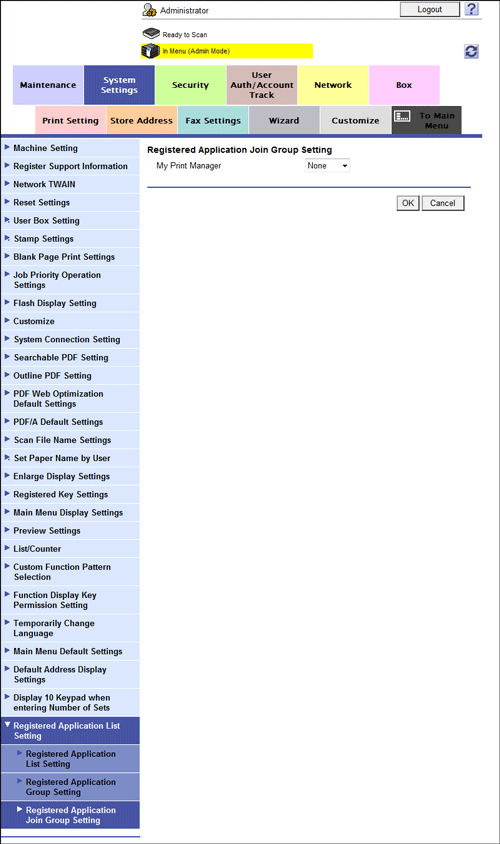

In the administrator mode, select [System Settings] - [Registered Application List Setting] - [Registered Application Join Group Setting], then select the application to be registered in the group and click [Edit].
Select the group that the selected application belongs to, and click [OK].
