Copying Various Types of Originals

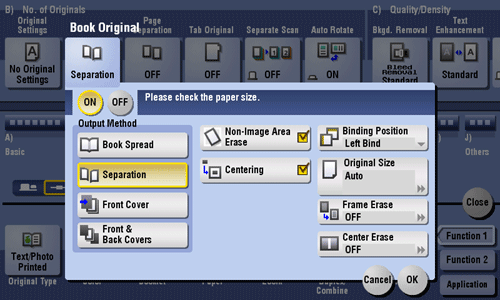

[ON]/[OFF]

Select [ON] to specify Book Original.

[Output Method]

Select the copy method of two-page spreads.

• [Book Spread]: Copy a two-page spread as one page.

• [Separation]: Copy the right and left pages of two-page spreads separately in the order of the page numbers.

• [Front Cover]: Copy the front cover and two-page spreads according to the page order of the original (scan in the order of front cover and two-page spreads).

• [Front & Back Covers]: Copy the front and back covers and two-page spreads according to the page order of the original (scan in the order of front cover, back cover, and two-page spreads).

[Non-Image Area Erase]

If you select Book Original, this item is set automatically.

When making copies with the ADF open and the original placed on the Original Glass, the machine detects the outline of the original and erases the area outside the original.

Cancel the setting if necessary.

[Centering]

If you select Book Original, this item is set automatically.

The original image is copied at the center of the page without enlarging it.

Cancel the setting if necessary.

[Binding Position]

If [Separation], [Front Cover] or [Front & Back Covers] is selected for [Output Method], select the two-page spread binding position.

Select [Left Bind] for two-page spreads of left binding, and [Right Bind] for two-page spreads of right binding.

Note that if the binding position is incorrectly specified, the page order of the two-page spread is reversed between the left- and right-hand pages.

[Original Size]

If the size of the original is not detected correctly, select a key indicating the size of the original to be scanned.

[Frame Erase]

Erases the shadow of the surrounding that is created when the original cover cannot be closed properly due to the thickness of the original.

You can erase the four sides of the original to the same width. Also, you can erase the four sides of the original to different widths.

• [Frame]: Select this option to erase the four sides of the original to the same width. In [Erase Amount], tap [+]/[-] for the inch area, tap [+]/[-] or Keypad for the centimeter area to specify the width of the area to be erased. To display the Keypad, tap the input area for the numeral.

• [Top]/[Bottom]/[Left]/[Right]: Select this option to erase the four sides of the original by specifying different widths for different sides. Clear the [Frame] check box, select a side ([Top], [Bottom], [Left] or [Right]) and specify the width of the area in [Erase Amount] by tapping [+]/[-] for an inch area and by tapping [+]/[-] or Keypad for a centimeter area. To display the Keypad, tap the input area for the numeral.
  If you do not want to erase the side, cancel the setting for [Erase].

[Center Erase]

Erases the shadow created in the center when the original cover cannot be closed correctly due to the thickness of the original.

Specify the width of the area to erase by tapping [+]/[-] for the inch area and by tapping [+]/[-] or Keypad for the centimeter area. To display the Keypad, tap the input area for the numeral.

[ON]/[OFF]

Select [ON] to specify Book Separation.

[Original Margin Position]

Select the two-page spread binding position from [Left Bind] and [Right Bind].

[Original Size]

If the size of the original is not detected correctly, select a key indicating the size of the original to be scanned. If the machine cannot detect the size of irregular sized originals or photos, manually specify the size.

[ON]/[OFF]

Select [ON] to copy an index original. Also select the size of the index original.
